Ultra Compact AM FM Mini Mobile CB Radio
CB-40M Citizen Band Radio
$ 83.08 – $ 111.24
Share this:
Ultra Compact AM/FM Mini Mobile CB Radio 26MHz 27MHz Amateur Car radio Station
CB-40M Citizen Band Radio
Main features:
- *25.615-30.105MHz(DE version)
- *Mini and compact
- * AM/FM mode switchable
- * 9/19 emergency channel
- * 10 groups of channel for choose
- * Squelch
- * ASQ control
- * RF gain control
- * Keypad lock
- * Scan function
- * High low power
- * Reset function
- * 40Ch fixed Can not program
Specification:
- Brand: Anysecu
- Model: CB-40M
- Modulation Mode: AM/FM
- Frequency Range: 25.615-30.105MHz
- Emergency channel: 9/19
- Frequency Tolerance: ±5.0ppm
- Input Voltage: 13.2 V
- Dimensions: 109x109x28mm
- Weight: 310g with power cable
- Frequency Control: PLL Synthesizer
- Operating Temperature Range: -20℃ – +50℃
Current Drain:
- Transmit: 2A MAX
- Receive Squelched: 0.3A
- VOL Max: 0.8A
- Antenna Connector: UHF, S0239, M
Transmitter:
- Power Output Low power: 4W /High power :8W FM/AM
- Transmission interference: Inferior to 4nW(-54dBm)
- Frequency Response: 300-3000Hz
- Modulated signal distortion: Inferior to 5%
- Output Impedance: 50 ohms
Receiver:
- Sensitivity: Less than luV for 10dB (S+N)/N
- Image Rejection: 70dB
- Adjacent Channel Rejection: 60dB
- IF Frequencies: 1st 10.695MHz 2nd 455KHz
- Automatic Gain Control (AGC) Less than 10dB change in audio
- Output for inputs from 10 to 50000uV
- Squelch less than luv
- Audio Output Power :1 Watts
Frequency Response:300-3000Hz
CB-40M Default Frequency List:
-
- (DE version )
- DE frequency list 26.965 – 27.405mhz 4W 40 Channels
Shipping Countries: United Kingdom (UK), United States (US)
Shipping Policy
Please check the item you are buying from us as it may be coming from various places around the world from the UK, Europe, US and China. We want to bring you the best products possible at the very best prices but delivery may take a little longer. Please check the delivery times that are clearly marked on each product.
Specification: Ultra Compact AM FM Mini Mobile CB Radio
|
||||||||||||||||||||||||||||||
| Dimensions | ||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
||||||||||||||||||||||||||||||
15 reviews for Ultra Compact AM FM Mini Mobile CB Radio
Only logged in customers who have purchased this product may leave a review.
Vendor Information
- Store Name: 40Metres
- Vendor: 40 Metres
- 5.00 rating from 1 review
BM800 Condenser Microphone Professional Voice Recording Microphone
Sold by 40Metres

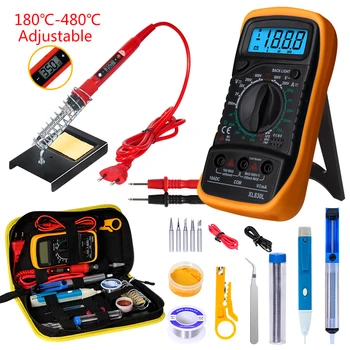

Soldering Iron With Digital Multimeter Kit Adjustable Temperature Auto Ranging AC/DC Tester Kit
